PVP : 5999 EUROS

OFERTA : 4800 EUROS

MODELO 2025

MOTOR BOSCH Y BATERIA 800 W

Bike Geometry

• Bottom bracket drop [mm]: 20 mm
• Chain stay length [mm]: 455 mm
• Fork total length [mm]: 44 mm
• Head tube angle: 64.5 degrees
• Head tube length [mm]: 130 mm,135 mm,140 mm
• Reach [mm]: 408 mm,435 mm,468 mm,501 mm
• Stack [mm]: 651 mm,656 mm,660 mm
• Stand over height [mm]: 770 mm,760 mm
• Seat tube angle: 75 degrees
• Seat tube length [mm]: 405 mm,435 mm,465 mm,485 mm
• Top tube length [mm]: 567 mm,594 mm,628 mm,662 mm
• Wheelbase [mm]: 1206 mm,1233 mm,1268 mm,1303 mm

Drivetrain

• Cassette Teeth: 10-51T
• Crank Arm length: 160,165
• Crankset Teeth: 36T
• Crankset Type: single
• Number Of Gears: 12
• Pedal Inclusive: Si
• Cassette Description: Shimano, SLX CS-M7100-12, MICRO SPLINE
• Chain Description: Shimano, Cadena, Deore CN-M6100 12s
• Chain Guide Description: Winning, Nylon direct mount
• Crankset Description: Miranda, Crius ISIS Crankarm 160 mm + Chainring
• Derailleur Hanger Description: Glory Wheel, Hanger UDH
• Derailleur Rear Description: Shimano, SLX RD-M7100 12s, Shadow+
• Gear Description: Shimano, Derailleur
• Pedal Description: XLC, VPE-527 MTB Alloy Pedal w. Reflector
• Shifter Right Description: Shimano, Triggershift, Deore SL-M6100, Rapidfire+

E-bike components

• Battery Capacity: 800 Wh
• Battery Location: Powertube
• Max Support Speed [km/h]: 25 km/h
• Motor Torque [nm]: 85 Nm
• Motor Location: Center
• Battery Description: Bosch, InTube 800Wh
• Charger Description: Bosch, Charger 4A

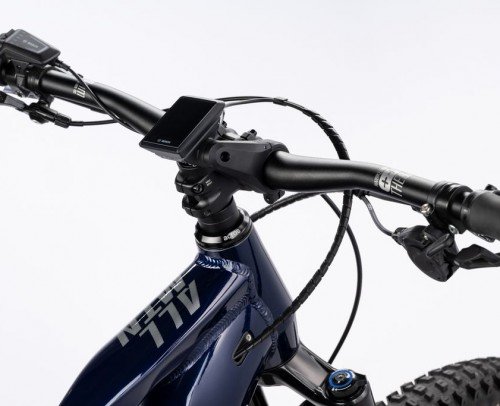

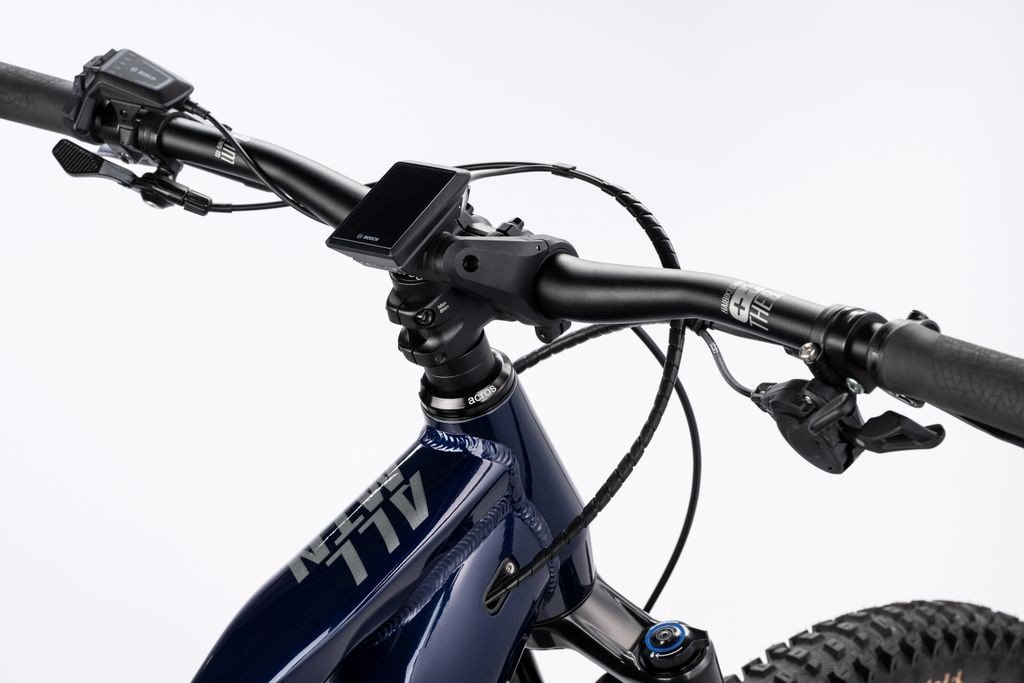

• Display Description: Bosch, Kiox 300 + LED Remote

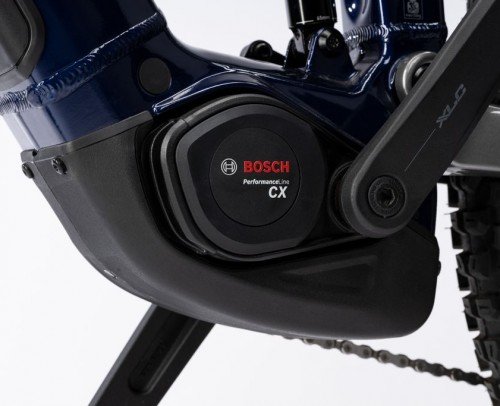

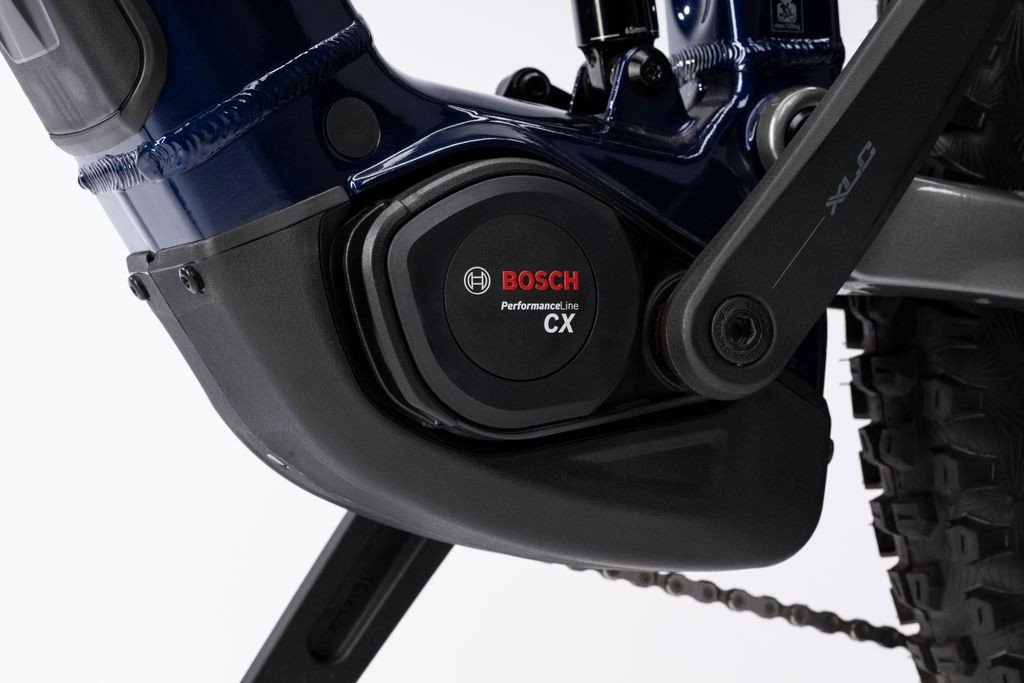

• Motor Description: Bosch, Performance CX

Frame and more

• Framesize Convection: S,M,L,XL
• Max loadable weight (KG): 135 kg
• Front Fork Type: Suspension
• Suspension Type: Fully
• Travel Front: 160 mm
• Travel Rear: 150 mm
• Front Fork Description: Rockshox, Psylo Gold RC 160 mm
• Frame Description: High, Aluminio, Unisex
• Shock Description: Rockshox, Deluxe Select+ RT 205x65mm, DebonAir+

Handlebar and Saddle

• Handlebar Diameter: 31.8 mm
• Handlebar Width: 780 mm
• Seatpost Material: Aluminio
• Stem Length: 35 mm
• Handgrip Description: Velo, VLG-1751D2, MTB Grips
• Handlebar Description: Haibike, TheBar++ Dia. 31.8 mm
• Headset Description: Acros, Semi-integrated, BlockLock 135° ZS44/ZS56
• Saddle Description: Prologo, Proxim W400 Performance
• Seatpost Description: Limotec, Dropperpost, A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
• Stem Description: Haibike, The Stem++ Ahead JD-ST97A, L: 35 mm

Lighting

• Brake Light: No

Sistema de frenos

• Brake Rear Mount: Post Mount
• Brake Front Description: Shimano, Freno de disco hidráulico, Deore BR-MT420, 4 pistons 203 mm
• Brake Rear Description: Shimano, Freno de disco hidráulico, Deore BR-MT420, 4 pistons 203 mm
• Brake Lever Description: Shimano, BL-MT401
• Brake Rotor Description: Shimano, SM-RT30 203 mm, Centerlock

Wheels and wheel components

• Tamaño de la rueda en pul: 29
• Hub Front Description: Shimano, HB-TC500-15-B, Boost 15x110 mm, Centerlock
• Hub Rear Description: Shimano, FH-MT510-B, Boost 12x148 mm, CL, MS
• Rim Description: WTB, ST i30 TCS 2.0 32H
• Rim Rear Description: WTB, ST i35 TCS 2.0 32H
• Spoke Description: Sapim, Race 2.0, J-Bend
• Tyre Description: Continental, Kryptotal-Fr, Trail Endurance, 60-622
• Tyre Rear Description: Continental, Xynotal-Re, Trail Endurance
• Wheelsize Description: 29, 27.5
