OVERVOLT AM 9.7 2024
Bike Geometry
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 102 mm,110 mm,130 mm,150 mm
Reach [mm]: 435 mm,455 mm,475 mm,500 mm
Stack [mm]: 631 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,470 mm,510 mm
Top tube length [mm]: 587 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1230 mm,1248 mm,1276 mm,1310 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160,165
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XG1275 Eagle 12s, XD
Chain Description: Sram, Cadena, XX1 Black Eagle Powerlock 12s
Crankset Description: E Thirteen, E-spec+ Race Carbon + SRAM Eagle steel ring
Derailleur Rear Description: Sram, X01 Eagle, X01 Eagle, 12s
Gear Description: Sram, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Sram, Triggershift, X01 Single click Eagle 12s
E-bike components
Battery Capacity: 750 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Intube battery 750Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, KIOX 300 + LED Remote
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: FOX Factory, 38 Factory 29'' 15x110 / 3-position lever 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: FOX Factory, X Factory 230x60 mm 2-position lever
Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Carbón
Handlebar Rise: 19
Handlebar Width: 785 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 40 mm,45 mm
Handgrip Description: Lapierre, Anodized, small diameter
Handlebar Description: Race Face, Flat bar, SixC carbon, Rise: 19 mm, Ø: 31.8 mm
Headset Description: Fsa, Integrated, NO.55R/57E, Black Anodized, 1-1/8"-1.5"
Saddle Description: Fizik, MTB, Terra Aidon X3 145mm
Seatpost Description: JD, Dropperpost, Dropper, Ø: 31.6 mm, travel: 125 mm + MMX Remote
Stem Description: Lapierre, Alloy CNC, Ø: 31.8 mm, L: 40 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Code RSC 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Code RSC 4 pistons, 200 mm
Brake Lever Description: Sram, Code RSC-BL
Brake Rotor Description: Sram, Centerline 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 29
Tyre Description: Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, 62-622
Tyre Rear Description: Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Wheelset Description: Mavic, E-DEEMAX S 30 29"
Wheelset Rear Description: Mavic, E-DEEMAX S 35 27,5" XD driver
Wheelsize Description: 29, 27.5
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 102 mm,110 mm,130 mm,150 mm
Reach [mm]: 435 mm,455 mm,475 mm,500 mm
Stack [mm]: 631 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,470 mm,510 mm
Top tube length [mm]: 587 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1230 mm,1248 mm,1276 mm,1310 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160,165
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XG1275 Eagle 12s, XD
Chain Description: Sram, Cadena, XX1 Black Eagle Powerlock 12s
Crankset Description: E Thirteen, E-spec+ Race Carbon + SRAM Eagle steel ring
Derailleur Rear Description: Sram, X01 Eagle, X01 Eagle, 12s
Gear Description: Sram, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Sram, Triggershift, X01 Single click Eagle 12s
E-bike components
Battery Capacity: 750 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Intube battery 750Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, KIOX 300 + LED Remote
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: FOX Factory, 38 Factory 29'' 15x110 / 3-position lever 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: FOX Factory, X Factory 230x60 mm 2-position lever
Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Carbón
Handlebar Rise: 19
Handlebar Width: 785 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 40 mm,45 mm
Handgrip Description: Lapierre, Anodized, small diameter
Handlebar Description: Race Face, Flat bar, SixC carbon, Rise: 19 mm, Ø: 31.8 mm
Headset Description: Fsa, Integrated, NO.55R/57E, Black Anodized, 1-1/8"-1.5"
Saddle Description: Fizik, MTB, Terra Aidon X3 145mm
Seatpost Description: JD, Dropperpost, Dropper, Ø: 31.6 mm, travel: 125 mm + MMX Remote
Stem Description: Lapierre, Alloy CNC, Ø: 31.8 mm, L: 40 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Code RSC 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Code RSC 4 pistons, 200 mm
Brake Lever Description: Sram, Code RSC-BL
Brake Rotor Description: Sram, Centerline 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 29
Tyre Description: Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, 62-622
Tyre Rear Description: Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Wheelset Description: Mavic, E-DEEMAX S 30 29"
Wheelset Rear Description: Mavic, E-DEEMAX S 35 27,5" XD driver
Wheelsize Description: 29, 27.5
OVERVOLT AM 10.8 2025
Bike Geometry
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 110 mm,130 mm,150 mm
Reach [mm]: 433 mm,455 mm,475 mm,500 mm
Stack [mm]: 638 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,460 mm,490 mm
Top tube length [mm]: 586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1231 mm,1248 mm,1276 mm,1311 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1275 T-TYPE 12s, XD
Chain Description: Sram, Cadena, GX T-TYPE 12s
Crankset Description: E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Derailleur Rear Description: Sram, GX Eagle AXS T-TYPE 12s
Gear Description: Sram, Derailleur
Pedal Description: XLC, by VP
Shifter Left Description: Sram, Triggershift, AXS Pod 12s
Shifter Right Description: Sram, Triggershift, AXS Pod Controller 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powertube Horizontal 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, Kiox 300
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: Rockshox, ZEB Ultimate Charger 3.1 RC2 15x110 29" 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: Rockshox, Super Deluxe Ultimate RC2T 205x60mm Trunnion/30x8mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm,200 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, grips small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Saddle Description: Selle Royal, MTB, Terra Ridon X3 145mm Kium Mobius
Seatpost Description: JD, Dropperpost, YSI05, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Not Adjustable, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Maven Silver 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Maven Silver 4 pistons, 200 mm
Brake Lever Description: Sram, Maven Silver-BL
Brake Rotor Description: Sram, HS2 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 27
Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
Tyre Rear Description: Continental, Kryptotal R Enduro Soft
Wheelset Description: DT Swiss, HX1501 Spline One 622x30, 15x110 mm
Wheelset Rear Description: DT Swiss, HX1501 Spline One 584x35, 12x148 mm, XD Driver
Wheelsize Description: 29, 27.5
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 110 mm,130 mm,150 mm
Reach [mm]: 433 mm,455 mm,475 mm,500 mm
Stack [mm]: 638 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,460 mm,490 mm
Top tube length [mm]: 586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1231 mm,1248 mm,1276 mm,1311 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1275 T-TYPE 12s, XD
Chain Description: Sram, Cadena, GX T-TYPE 12s
Crankset Description: E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Derailleur Rear Description: Sram, GX Eagle AXS T-TYPE 12s
Gear Description: Sram, Derailleur
Pedal Description: XLC, by VP
Shifter Left Description: Sram, Triggershift, AXS Pod 12s
Shifter Right Description: Sram, Triggershift, AXS Pod Controller 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powertube Horizontal 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, Kiox 300
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: Rockshox, ZEB Ultimate Charger 3.1 RC2 15x110 29" 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: Rockshox, Super Deluxe Ultimate RC2T 205x60mm Trunnion/30x8mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm,200 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, grips small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Saddle Description: Selle Royal, MTB, Terra Ridon X3 145mm Kium Mobius
Seatpost Description: JD, Dropperpost, YSI05, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Not Adjustable, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Maven Silver 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Maven Silver 4 pistons, 200 mm
Brake Lever Description: Sram, Maven Silver-BL
Brake Rotor Description: Sram, HS2 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 27
Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
Tyre Rear Description: Continental, Kryptotal R Enduro Soft
Wheelset Description: DT Swiss, HX1501 Spline One 622x30, 15x110 mm
Wheelset Rear Description: DT Swiss, HX1501 Spline One 584x35, 12x148 mm, XD Driver
Wheelsize Description: 29, 27.5

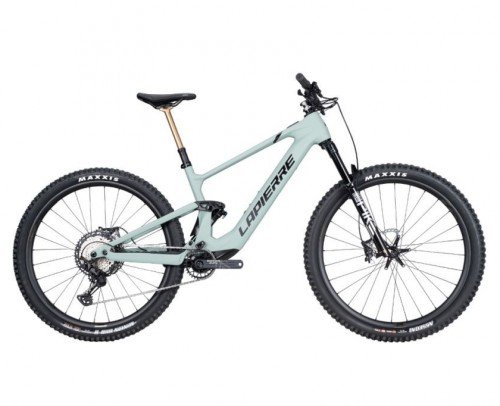

E - ZESTY AM LTD 2024
Bike Geometry
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 435 mm,440 mm,445 mm
Fork offset [mm]: 550 mm
Fork total length [mm]: 44 mm
Head tube angle: 65 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 610 mm,619 mm,628 mm,637 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 370 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 576 mm,603 mm,625 mm,652 mm
Wheelbase [mm]: 1188 mm,1217 mm,1246 mm,1280 mm
Drivetrain
Cassette Teeth: 10-51T
Crank Arm length: 165,170
Crankset Teeth: 32T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Shimano, Cassette, Deore XT CS-M8100-12, MICRO SPLINE
Chain Description: Shimano, Cadena, SLX M7100 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: Rotor, E-Kapic Crank + Rotor Ride 60 Alloy chainring
Derailleur Rear Description: Shimano, XT, XT M8100, 12s Shadow +
Gear Description: Shimano, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Shimano, Triggershift, SLX SL-M7100
E-bike components
Battery Capacity: 430 Wh
Battery Location: Downtube
Motor Torque [nm]: 60 Nm
Motor Location: Center
Battery Description: Fazua, 430Wh battery pack
Charger Description: Fazua, 3A90 Charger
Display Description: Fazua, Ring control remote
Motor Description: Fazua, RIDE 60
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 140 mm
Front Fork Description: Rockshox, Pike Ultimate Charger 3 RC2 140 mm
Frame Description: HIGH, Carbón, Hombre
Shock Description: Rockshox, Deluxe Ultimate 210x55 mm
Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Carbón
Handlebar Rise: 20
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 40 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Renthal, Flat bar, Fatbar Carbon, Rise: 20 mm, Ø: 31.8 mm
Headset Description: Acros, Integrated, integrated headset with Block Lock'
Saddle Description: Fizik, MTB, Terra Aidon X5 145mm
Seatpost Description: Lapierre, Dropperpost, Light Dropper, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Alloy CNC, Ø: 31.8 mm, L: 40 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Shimano, Freno de disco hidráulico, XT M8120 4 pistons, 203 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, XT M8120 4 pistons, 203 mm
Brake Lever Description: Shimano, XT M8120-BL
Brake Rotor Description: Shimano, MT800 203 mm, Centerlock
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 29
Tyre Description: Maxxis, Assegai 3C MaxxTerra, EXO+, 29x2.5 WT, 60TPI, TR
Tyre Rear Description: Maxxis, Minion DHR II, EXO, 29x2.4 WT, 60TPI, TR
Wheelset Description: Lapierre, eAM+ Carbon, 15x110 mm, Micro Spline driver, Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Carbon, 12x148 mm, Micro Spline driver, Tubeless Ready
Wheelsize Description: 29, 29
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 435 mm,440 mm,445 mm
Fork offset [mm]: 550 mm
Fork total length [mm]: 44 mm
Head tube angle: 65 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 610 mm,619 mm,628 mm,637 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 370 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 576 mm,603 mm,625 mm,652 mm
Wheelbase [mm]: 1188 mm,1217 mm,1246 mm,1280 mm
Drivetrain
Cassette Teeth: 10-51T
Crank Arm length: 165,170
Crankset Teeth: 32T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Shimano, Cassette, Deore XT CS-M8100-12, MICRO SPLINE
Chain Description: Shimano, Cadena, SLX M7100 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: Rotor, E-Kapic Crank + Rotor Ride 60 Alloy chainring
Derailleur Rear Description: Shimano, XT, XT M8100, 12s Shadow +
Gear Description: Shimano, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Shimano, Triggershift, SLX SL-M7100
E-bike components
Battery Capacity: 430 Wh
Battery Location: Downtube
Motor Torque [nm]: 60 Nm
Motor Location: Center
Battery Description: Fazua, 430Wh battery pack
Charger Description: Fazua, 3A90 Charger
Display Description: Fazua, Ring control remote
Motor Description: Fazua, RIDE 60
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 140 mm
Front Fork Description: Rockshox, Pike Ultimate Charger 3 RC2 140 mm
Frame Description: HIGH, Carbón, Hombre
Shock Description: Rockshox, Deluxe Ultimate 210x55 mm
Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Carbón
Handlebar Rise: 20
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 40 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Renthal, Flat bar, Fatbar Carbon, Rise: 20 mm, Ø: 31.8 mm
Headset Description: Acros, Integrated, integrated headset with Block Lock'
Saddle Description: Fizik, MTB, Terra Aidon X5 145mm
Seatpost Description: Lapierre, Dropperpost, Light Dropper, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Alloy CNC, Ø: 31.8 mm, L: 40 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Shimano, Freno de disco hidráulico, XT M8120 4 pistons, 203 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, XT M8120 4 pistons, 203 mm
Brake Lever Description: Shimano, XT M8120-BL
Brake Rotor Description: Shimano, MT800 203 mm, Centerlock
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 29
Tyre Description: Maxxis, Assegai 3C MaxxTerra, EXO+, 29x2.5 WT, 60TPI, TR
Tyre Rear Description: Maxxis, Minion DHR II, EXO, 29x2.4 WT, 60TPI, TR
Wheelset Description: Lapierre, eAM+ Carbon, 15x110 mm, Micro Spline driver, Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Carbon, 12x148 mm, Micro Spline driver, Tubeless Ready
Wheelsize Description: 29, 29

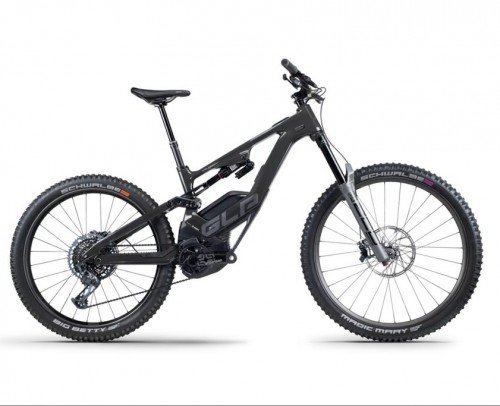

OVERVOLT GLP TEAM 2024
Bike Geometry
Bottom bracket drop [mm]: 10 mm
Chain stay length [mm]: 440 mm
Fork offset [mm]: 600 mm
Fork total length [mm]: 44 mm
Head tube angle: 64 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 629 mm,638 mm,647 mm,656 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 390 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 580 mm,607 mm,629 mm,656 mm
Wheelbase [mm]: 1225 mm,1255 mm,1279 mm,1308 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160,165
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1295 T-TYPE-12, XD
Chain Description: Sram, Cadena, XO T-TYPE Powerlock 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: E Thirteen, E-spec+ Race Carbon + SRAM XX T-TYPE
Derailleur Rear Description: Sram, X01 Eagle AXS, X0 Eagle AXS T-TYPE, 12s
Gear Description: Sram, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Sram, Triggershift, AXS Pod Ultimate 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powerpack battery 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, KIOX 300 + Mini Remote
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: Rockshox, ZEB Ultimate Charger 3 RC2 170 mm
Frame Description: HIGH, Carbón, Hombre
Shock Description: Rockshox, Vivid Air 2 Ultimate, 2-Pos Lever, 205x65mm Trunnion
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Renthal, Flat bar, Fatbar, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Top: Integrated routing / Bottom: Block lock
Saddle Description: Fizik, Terra Aidon X3 KIUM 145mm
Seatpost Description: Sram, Dropperpost, Reverb AXS, Ø: 31.6mm, travel: 125 mm
Stem Description: Renthal, Apex, Ø: 35 mm, L: 33 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Code Ultimate Stealth 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Code Ultimate Stealth 4 pistons, 200 mm
Brake Lever Description: Sram, Code Ultimate Stealth-BL
Brake Rotor Description: Sram, Centerline 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 28
Tyre Description: Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, TR, 62-622
Tyre Rear Description: Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Wheelset Description: Lapierre, eAM+ carbon, 622x30, J-bend Tubeless ready, 15x110 mm
Wheelset Rear Description: Lapierre, eAM+ carbon, 584x33 J-bend Tubeless ready, 12x148 mm
Wheelsize Description: 29, 27.5
Bottom bracket drop [mm]: 10 mm
Chain stay length [mm]: 440 mm
Fork offset [mm]: 600 mm
Fork total length [mm]: 44 mm
Head tube angle: 64 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 629 mm,638 mm,647 mm,656 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 390 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 580 mm,607 mm,629 mm,656 mm
Wheelbase [mm]: 1225 mm,1255 mm,1279 mm,1308 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160,165
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1295 T-TYPE-12, XD
Chain Description: Sram, Cadena, XO T-TYPE Powerlock 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: E Thirteen, E-spec+ Race Carbon + SRAM XX T-TYPE
Derailleur Rear Description: Sram, X01 Eagle AXS, X0 Eagle AXS T-TYPE, 12s
Gear Description: Sram, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Sram, Triggershift, AXS Pod Ultimate 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powerpack battery 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, KIOX 300 + Mini Remote
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: Rockshox, ZEB Ultimate Charger 3 RC2 170 mm
Frame Description: HIGH, Carbón, Hombre
Shock Description: Rockshox, Vivid Air 2 Ultimate, 2-Pos Lever, 205x65mm Trunnion
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Renthal, Flat bar, Fatbar, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Top: Integrated routing / Bottom: Block lock
Saddle Description: Fizik, Terra Aidon X3 KIUM 145mm
Seatpost Description: Sram, Dropperpost, Reverb AXS, Ø: 31.6mm, travel: 125 mm
Stem Description: Renthal, Apex, Ø: 35 mm, L: 33 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Code Ultimate Stealth 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Code Ultimate Stealth 4 pistons, 200 mm
Brake Lever Description: Sram, Code Ultimate Stealth-BL
Brake Rotor Description: Sram, Centerline 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 28
Tyre Description: Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, TR, 62-622
Tyre Rear Description: Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Wheelset Description: Lapierre, eAM+ carbon, 622x30, J-bend Tubeless ready, 15x110 mm
Wheelset Rear Description: Lapierre, eAM+ carbon, 584x33 J-bend Tubeless ready, 12x148 mm
Wheelsize Description: 29, 27.5
OVERVOLT GLP SE 2024
Bike Geometry
Bottom bracket drop [mm]: 10 mm
Chain stay length [mm]: 440 mm
Fork offset [mm]: 600 mm
Fork total length [mm]: 44 mm
Head tube angle: 64 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 629 mm,638 mm,647 mm,656 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 390 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 580 mm,607 mm,629 mm,656 mm
Wheelbase [mm]: 1225 mm,1255 mm,1279 mm,1308 mm
Drivetrain
Cassette Teeth: 10-51T
Crank Arm length: 160,165
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Shimano, Cassette, Deore XT CS-M8100-12, MICRO SPLINE
Chain Description: Shimano, Cadena, XT CN-M8100 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: E Thirteen, E-spec+ Race Carbon + E13 E-spec Alloy chainring
Derailleur Rear Description: Shimano, XTR, XTR 12s Shadow +
Gear Description: Shimano, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Shimano, Triggershift, XTR SL-M9100
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powerpack battery 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, KIOX 300 + Mini Remote
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: FOX Factory, Float 38 Factory FIT4 170 mm / 3-position lever
Frame Description: HIGH, Carbón, Hombre
Shock Description: FOX Factory, Float X Factory, 2-Pos Lever, LSC, LV Evol, 205x65 mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Top: Integrated routing / Bottom: Block lock
Saddle Description: Fizik, MTB, Terra Aidon X3 145mm
Seatpost Description: Limotec, Dropperpost, A1 Light dropper, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Thirty Five Alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Shimano, Freno de disco hidráulico, XTR 4 pistons, BR-M9120, 203 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, XTR 4 pistons, BR-M9120, 203 mm
Brake Lever Description: Shimano, XTR BL-M9100
Brake Rotor Description: Shimano, RTMT800 / RTEM810 with magnet, 203 mm, Centerlock
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 28
Tyre Description: Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, TR, 62-622
Tyre Rear Description: Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Wheelset Description: Mavic, E-DEEMAX S 30 29" 15x110 mm
Wheelset Rear Description: Mavic, E-DEEMAX S 35 27,5" Micro Spline driver 12x148 mm
Wheelsize Description: 29, 27.5
Bottom bracket drop [mm]: 10 mm
Chain stay length [mm]: 440 mm
Fork offset [mm]: 600 mm
Fork total length [mm]: 44 mm
Head tube angle: 64 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 629 mm,638 mm,647 mm,656 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 390 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 580 mm,607 mm,629 mm,656 mm
Wheelbase [mm]: 1225 mm,1255 mm,1279 mm,1308 mm
Drivetrain
Cassette Teeth: 10-51T
Crank Arm length: 160,165
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Shimano, Cassette, Deore XT CS-M8100-12, MICRO SPLINE
Chain Description: Shimano, Cadena, XT CN-M8100 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: E Thirteen, E-spec+ Race Carbon + E13 E-spec Alloy chainring
Derailleur Rear Description: Shimano, XTR, XTR 12s Shadow +
Gear Description: Shimano, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Shimano, Triggershift, XTR SL-M9100
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powerpack battery 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, KIOX 300 + Mini Remote
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: FOX Factory, Float 38 Factory FIT4 170 mm / 3-position lever
Frame Description: HIGH, Carbón, Hombre
Shock Description: FOX Factory, Float X Factory, 2-Pos Lever, LSC, LV Evol, 205x65 mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Top: Integrated routing / Bottom: Block lock
Saddle Description: Fizik, MTB, Terra Aidon X3 145mm
Seatpost Description: Limotec, Dropperpost, A1 Light dropper, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Thirty Five Alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Shimano, Freno de disco hidráulico, XTR 4 pistons, BR-M9120, 203 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, XTR 4 pistons, BR-M9120, 203 mm
Brake Lever Description: Shimano, XTR BL-M9100
Brake Rotor Description: Shimano, RTMT800 / RTEM810 with magnet, 203 mm, Centerlock
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 28
Tyre Description: Schwalbe, MAGIC MARY Evo, 67TPI, Super Trail, Addix Ultra soft, TR, 62-622
Tyre Rear Description: Schwalbe, BIG BETTY, 67TPI, Super Trail, Addix soft, TR
Wheelset Description: Mavic, E-DEEMAX S 30 29" 15x110 mm
Wheelset Rear Description: Mavic, E-DEEMAX S 35 27,5" Micro Spline driver 12x148 mm
Wheelsize Description: 29, 27.5
OVERVOLT AM 9.8 2025
Bike Geometry
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 110 mm,130 mm,150 mm
Reach [mm]: 433 mm,455 mm,475 mm,500 mm
Stack [mm]: 638 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,460 mm,490 mm
Top tube length [mm]: 586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1231 mm,1248 mm,1276 mm,1311 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1275 T-TYPE 12s, XD
Chain Description: Sram, Cadena, GX T-TYPE 12s
Crankset Description: E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Derailleur Rear Description: Sram, GX Eagle AXS T-TYPE 12s
Gear Description: Sram, Derailleur
Pedal Description: XLC, by VP
Shifter Left Description: Sram, Triggershift, AXS Pod 12s
Shifter Right Description: Sram, Triggershift, AXS Pod Controller 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powertube Horizontal 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, Kiox 300
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: FOX Factory, 38 Float Performance Elite GRIP X 15x110 29" 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: FOX Factory, Float X Performance Elite 205x60 mm Trunnion/30x8 mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm,200 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, grips small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Saddle Description: Selle Royal, MTB, Terra Aidon X5 145mm S-Alloy Mobius
Seatpost Description: JD, Dropperpost, YSI05, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Not Adjustable, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Maven Bronze 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Maven Bronze 4 pistons, 200 mm
Brake Lever Description: Sram, Maven Bronze-BL
Brake Rotor Description: Sram, HS2 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 27
Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
Tyre Rear Description: Continental, Kryptotal R Enduro Soft
Wheelset Description: Lapierre, eAM+ Alloy 32H, front: 622x33 J-bend Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Alloy 32H, 584x35 J-bend Tubeless ready
Wheelsize Description: 29, 27.5
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 110 mm,130 mm,150 mm
Reach [mm]: 433 mm,455 mm,475 mm,500 mm
Stack [mm]: 638 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,460 mm,490 mm
Top tube length [mm]: 586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1231 mm,1248 mm,1276 mm,1311 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1275 T-TYPE 12s, XD
Chain Description: Sram, Cadena, GX T-TYPE 12s
Crankset Description: E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Derailleur Rear Description: Sram, GX Eagle AXS T-TYPE 12s
Gear Description: Sram, Derailleur
Pedal Description: XLC, by VP
Shifter Left Description: Sram, Triggershift, AXS Pod 12s
Shifter Right Description: Sram, Triggershift, AXS Pod Controller 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powertube Horizontal 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, Kiox 300
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: FOX Factory, 38 Float Performance Elite GRIP X 15x110 29" 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: FOX Factory, Float X Performance Elite 205x60 mm Trunnion/30x8 mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm,200 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, grips small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Saddle Description: Selle Royal, MTB, Terra Aidon X5 145mm S-Alloy Mobius
Seatpost Description: JD, Dropperpost, YSI05, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Not Adjustable, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, Maven Bronze 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Maven Bronze 4 pistons, 200 mm
Brake Lever Description: Sram, Maven Bronze-BL
Brake Rotor Description: Sram, HS2 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 27
Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
Tyre Rear Description: Continental, Kryptotal R Enduro Soft
Wheelset Description: Lapierre, eAM+ Alloy 32H, front: 622x33 J-bend Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Alloy 32H, 584x35 J-bend Tubeless ready
Wheelsize Description: 29, 27.5

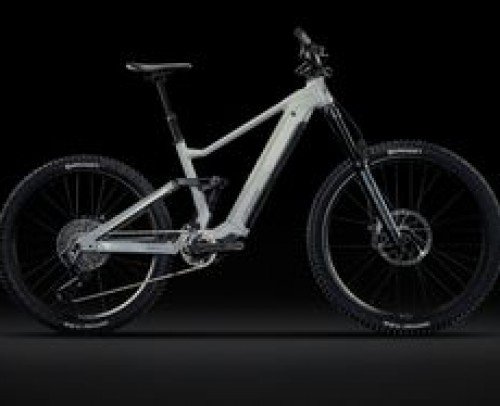

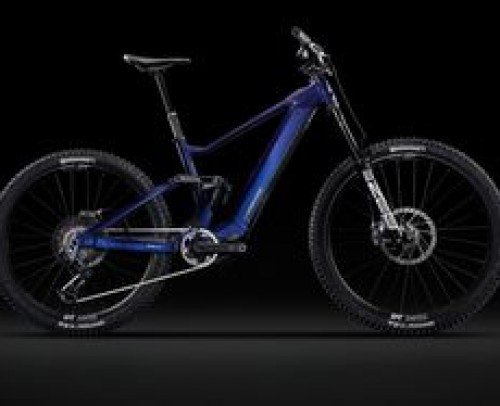

E - ZESTY AM 9.4 2024
Bike Geometry
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 435 mm,440 mm,445 mm
Fork offset [mm]: 550 mm
Fork total length [mm]: 44 mm
Head tube angle: 65 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 610 mm,619 mm,628 mm,637 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 370 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 576 mm,603 mm,625 mm,652 mm
Wheelbase [mm]: 1188 mm,1217 mm,1246 mm,1280 mm
Drivetrain
Cassette Teeth: 10-51T
Crank Arm length: 165,170
Crankset Teeth: 32T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Shimano, Cassette, Deore CS-M6100-12, MICRO SPLINE
Chain Description: Shimano, Cadena, Deore M6100 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: Rotor, E-Kapic Crank + Rotor Ride 60 Alloy chainring
Derailleur Rear Description: Shimano, XT, XT M8100, 12s Shadow +
Gear Description: Shimano, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Shimano, Triggershift, SLX SL-M7100-R Rapidfire
E-bike components
Battery Capacity: 430 Wh
Battery Location: Downtube
Motor Torque [nm]: 60 Nm
Motor Location: Center
Battery Description: Fazua, 430Wh battery pack
Charger Description: Fazua, 3A90 Charger
Display Description: Fazua, Ring control remote
Motor Description: Fazua, RIDE 60
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 140 mm
Front Fork Description: Rockshox, Lyrik Select+ Charger 3 RC2 140 mm
Frame Description: HIGH, Carbón, Hombre
Shock Description: Rockshox, Super Deluxe Select+ 210x55 mm
Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Aluminio
Handlebar Rise: 15
Handlebar Width: 780 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 40 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Lapierre, Flat bar, Alloy 6061DB, Rise: 15 mm, Ø: 31.8 mm
Headset Description: Acros, Integrated, integrated headset with Block Lock
Saddle Description: Fizik, MTB, Terra Aidon X5 145mm
Seatpost Description: Lapierre, Dropperpost, Dropper, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Alloy CNC, Ø: 31.8 mm, L: 40 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Shimano, Freno de disco hidráulico, SLX M7120 4 pistons, 203 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, SLX M7120 4 pistons, 203 mm
Brake Lever Description: Shimano, SLX M7120-BL
Brake Rotor Description: Shimano, MT800 203mm, Centerlock
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 29
Tyre Description: Maxxis, Assegai 3C MaxxTerra, EXO+, 29x2.5 WT, 60TPI, TR
Tyre Rear Description: Maxxis, Minion DHR II, EXO, 29x2.4 WT, 60TPI, TR
Wheelset Description: Lapierre, eAM+ Alloy 28H, Straight Pull, 15x110 mm, Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Alloy 28H, Straight Pull, 12x148 mm, Tubeless Ready
Wheelsize Description: 29, 29
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 435 mm,440 mm,445 mm
Fork offset [mm]: 550 mm
Fork total length [mm]: 44 mm
Head tube angle: 65 degrees
Head tube length [mm]: 110 mm,120 mm,130 mm,140 mm
Reach [mm]: 435 mm,460 mm,480 mm,505 mm
Stack [mm]: 610 mm,619 mm,628 mm,637 mm
Seat tube angle: 77 degrees
Seat tube length [mm]: 370 mm,400 mm,430 mm,460 mm
Top tube length [mm]: 576 mm,603 mm,625 mm,652 mm
Wheelbase [mm]: 1188 mm,1217 mm,1246 mm,1280 mm
Drivetrain
Cassette Teeth: 10-51T
Crank Arm length: 165,170
Crankset Teeth: 32T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Shimano, Cassette, Deore CS-M6100-12, MICRO SPLINE
Chain Description: Shimano, Cadena, Deore M6100 12s
Chain Guide Description: Lapierre, 1x
Crankset Description: Rotor, E-Kapic Crank + Rotor Ride 60 Alloy chainring
Derailleur Rear Description: Shimano, XT, XT M8100, 12s Shadow +
Gear Description: Shimano, Derailleur
Pedal Description: VP, VPE-527
Shifter Right Description: Shimano, Triggershift, SLX SL-M7100-R Rapidfire
E-bike components
Battery Capacity: 430 Wh
Battery Location: Downtube
Motor Torque [nm]: 60 Nm
Motor Location: Center
Battery Description: Fazua, 430Wh battery pack
Charger Description: Fazua, 3A90 Charger
Display Description: Fazua, Ring control remote
Motor Description: Fazua, RIDE 60
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 140 mm
Front Fork Description: Rockshox, Lyrik Select+ Charger 3 RC2 140 mm
Frame Description: HIGH, Carbón, Hombre
Shock Description: Rockshox, Super Deluxe Select+ 210x55 mm
Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Aluminio
Handlebar Rise: 15
Handlebar Width: 780 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 125 mm,150 mm,170 mm
Stem Length: 40 mm,45 mm
Handgrip Description: Lapierre, Grips Anodized, small diameter
Handlebar Description: Lapierre, Flat bar, Alloy 6061DB, Rise: 15 mm, Ø: 31.8 mm
Headset Description: Acros, Integrated, integrated headset with Block Lock
Saddle Description: Fizik, MTB, Terra Aidon X5 145mm
Seatpost Description: Lapierre, Dropperpost, Dropper, Ø: 31.6 mm, travel: 125 mm
Stem Description: Lapierre, Alloy CNC, Ø: 31.8 mm, L: 40 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Shimano, Freno de disco hidráulico, SLX M7120 4 pistons, 203 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, SLX M7120 4 pistons, 203 mm
Brake Lever Description: Shimano, SLX M7120-BL
Brake Rotor Description: Shimano, MT800 203mm, Centerlock
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 29
Tyre Description: Maxxis, Assegai 3C MaxxTerra, EXO+, 29x2.5 WT, 60TPI, TR
Tyre Rear Description: Maxxis, Minion DHR II, EXO, 29x2.4 WT, 60TPI, TR
Wheelset Description: Lapierre, eAM+ Alloy 28H, Straight Pull, 15x110 mm, Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Alloy 28H, Straight Pull, 12x148 mm, Tubeless Ready
Wheelsize Description: 29, 29

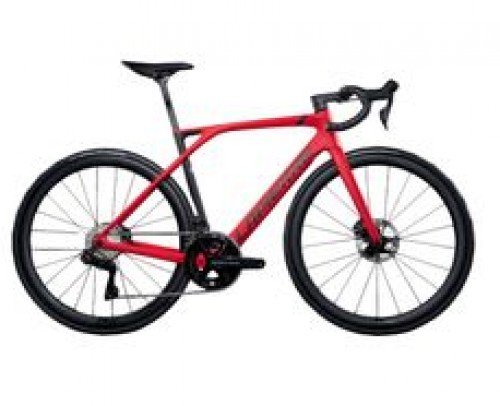

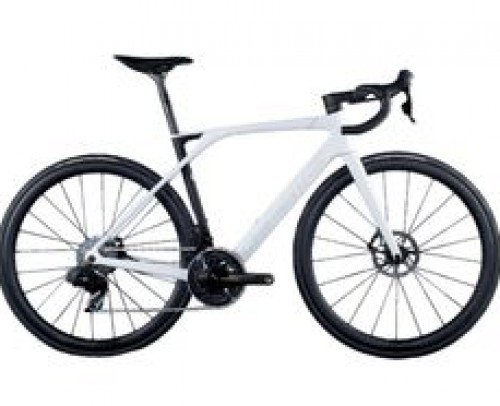

XELIUS SL 8.0 ASX 2024
Bike Geometry
Bottom bracket drop [mm]: 67 mm
Chain stay length [mm]: 405 mm
Fork offset [mm]: 368 mm
Fork total length [mm]: 50 mm
Head tube angle: 72 degrees,73 degrees,74 degrees
Head tube length [mm]: 105 mm,120 mm,140 mm,160 mm,180 mm
Reach [mm]: 376 mm,383 mm,393 mm,403 mm,415 mm
Stack [mm]: 501 mm,516 mm,538 mm,557 mm,580 mm
Seat tube angle: 74 degrees,73.5 degrees
Seat tube length [mm]: 440 mm,460 mm,490 mm,520 mm,550 mm
Top tube length [mm]: 520 mm,531 mm,547 mm,568 mm,587 mm
Wheelbase [mm]: 969 mm,981 mm,989 mm,1005 mm,1014 mm
Drivetrain
Cassette Teeth: 10-33T
Crankset Teeth: 48-35T
Crankset Type: double
Number Of Gears: 24
Bottom Bracket Description: Sram, PressFit, DUB 86.5 Road
Cassette Description: Sram, Cassette, XG-1270 12s, XD
Chain Description: Sram, Cadena, Force 12s
Crankset Description: Sram, Force D2 DUB
Derailleur FrontDescription: Sram, Force ETAP AXS Braze-On
Derailleur Rear Description: Sram, Force AXS, Force ETAP AXS Max, 12s
Gear Description: Sram, Derailleur
Pedal Description: VP, Flat, 335 Clips&Strap
Shifter Left Description: Sram, Shift-brake lever, Force ETAP AXS
Shifter Right Description: Sram, Shift-brake lever, Force ETAP AXS
Frame and more
Framesize Convection: XS,S,M,L,XL
Max loadable weight (KG): 110 kg
Front Fork Type: Non Suspension
Front Fork Description: Lapierre, Xelius SL Disc Thru axle UD Superlight
Frame Description: Carbón, Hombre
Handlebar and Saddle
Handgrip Description: Lapierre
Handlebar Description: Lapierre, Drop bar, Combo UD carbon, -10°
Headset Description: Acros, Integrated, Integrated + Xelius Acros Spacer
Saddle Description: Fizik, Race, Argo Vento R5 140 mm
Seatpost Description: Lapierre, Non Suspension, Carbon light, Ø: 27.2 mm, L: 350 mm
Stem Description: Lapierre, integrated in handlebar
Sistema de frenos
Brake Rear Mount: Flat Mount
Brake Front Description: Sram, Freno de disco hidráulico, Force, 160 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Force, 140 mm
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 28
Tyre Description: Continental, GP5000S TR Tubeless ready, 28-622
Tyre Rear Description: Continental, GP5000S TR Tubeless ready
Wheelset Description: Lapierre, Road Disc Carbon 700x21c, 38mm height, XDR driver, TR
Wheelset Rear Description: Lapierre, Road Disc Carbon 700x21c, 38mm height, XDR driver, TR
Wheelsize Description: 28, 28
Bottom bracket drop [mm]: 67 mm
Chain stay length [mm]: 405 mm
Fork offset [mm]: 368 mm
Fork total length [mm]: 50 mm
Head tube angle: 72 degrees,73 degrees,74 degrees
Head tube length [mm]: 105 mm,120 mm,140 mm,160 mm,180 mm
Reach [mm]: 376 mm,383 mm,393 mm,403 mm,415 mm
Stack [mm]: 501 mm,516 mm,538 mm,557 mm,580 mm
Seat tube angle: 74 degrees,73.5 degrees
Seat tube length [mm]: 440 mm,460 mm,490 mm,520 mm,550 mm
Top tube length [mm]: 520 mm,531 mm,547 mm,568 mm,587 mm
Wheelbase [mm]: 969 mm,981 mm,989 mm,1005 mm,1014 mm
Drivetrain
Cassette Teeth: 10-33T
Crankset Teeth: 48-35T
Crankset Type: double
Number Of Gears: 24
Bottom Bracket Description: Sram, PressFit, DUB 86.5 Road
Cassette Description: Sram, Cassette, XG-1270 12s, XD
Chain Description: Sram, Cadena, Force 12s
Crankset Description: Sram, Force D2 DUB
Derailleur FrontDescription: Sram, Force ETAP AXS Braze-On
Derailleur Rear Description: Sram, Force AXS, Force ETAP AXS Max, 12s
Gear Description: Sram, Derailleur
Pedal Description: VP, Flat, 335 Clips&Strap
Shifter Left Description: Sram, Shift-brake lever, Force ETAP AXS
Shifter Right Description: Sram, Shift-brake lever, Force ETAP AXS
Frame and more
Framesize Convection: XS,S,M,L,XL
Max loadable weight (KG): 110 kg
Front Fork Type: Non Suspension
Front Fork Description: Lapierre, Xelius SL Disc Thru axle UD Superlight
Frame Description: Carbón, Hombre
Handlebar and Saddle
Handgrip Description: Lapierre
Handlebar Description: Lapierre, Drop bar, Combo UD carbon, -10°
Headset Description: Acros, Integrated, Integrated + Xelius Acros Spacer
Saddle Description: Fizik, Race, Argo Vento R5 140 mm
Seatpost Description: Lapierre, Non Suspension, Carbon light, Ø: 27.2 mm, L: 350 mm
Stem Description: Lapierre, integrated in handlebar
Sistema de frenos
Brake Rear Mount: Flat Mount
Brake Front Description: Sram, Freno de disco hidráulico, Force, 160 mm
Brake Rear Description: Sram, Freno de disco hidráulico, Force, 140 mm
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 28
Tyre Description: Continental, GP5000S TR Tubeless ready, 28-622
Tyre Rear Description: Continental, GP5000S TR Tubeless ready
Wheelset Description: Lapierre, Road Disc Carbon 700x21c, 38mm height, XDR driver, TR
Wheelset Rear Description: Lapierre, Road Disc Carbon 700x21c, 38mm height, XDR driver, TR
Wheelsize Description: 28, 28
XELIUS SL 9.0 2024
Bike Geometry
Bottom bracket drop [mm]: 67 mm
Chain stay length [mm]: 405 mm
Fork offset [mm]: 368 mm
Fork total length [mm]: 50 mm
Head tube angle: 72 degrees,73 degrees,74 degrees
Head tube length [mm]: 105 mm,120 mm,140 mm,160 mm,180 mm
Reach [mm]: 376 mm,383 mm,393 mm,403 mm,415 mm
Stack [mm]: 501 mm,516 mm,538 mm,557 mm,580 mm
Seat tube angle: 74 degrees,73.5 degrees
Seat tube length [mm]: 440 mm,460 mm,490 mm,520 mm,550 mm
Top tube length [mm]: 520 mm,531 mm,547 mm,568 mm,587 mm
Wheelbase [mm]: 969 mm,981 mm,989 mm,1005 mm,1014 mm
Drivetrain
Cassette Teeth: 11-34T
Crankset Teeth: 52-36T
Crankset Type: double
Number Of Gears: 24
Bottom Bracket Description: Shimano, PressFit, BB72-41B
Cassette Description: Shimano, Cassette, Dura-Ace CS-R9200-12, MICRO SPLINE
Chain Description: Shimano, Cadena, Dura-Ace M9100 12s
Crankset Description: Shimano, Dura-Ace R9200
Derailleur FrontDescription: Shimano, Dura-Ace Di2 R9250
Derailleur Rear Description: Shimano, Dura-Ace, Dura-Ace Di2 R9250 12s
Gear Description: Shimano, Derailleur
Pedal Description: VP, Flat, 335 Clips&Strap
Shifter Left Description: Shimano, Shift-brake lever, Dura-Ace Di2 BR9270 + Di2 integrated Switch
Shifter Right Description: Shimano, Shift-brake lever, Dura-Ace Di2 BR9270 + Di2 integrated Switch
Frame and more
Framesize Convection: XS,S,M,L,XL
Max loadable weight (KG): 110 kg
Front Fork Type: Non Suspension
Front Fork Description: Lapierre, Xelius SL Disc Thru axle UD Superlight
Frame Description: Carbón, Hombre
Handlebar and Saddle
Handgrip Description: Lapierre
Handlebar Description: Lapierre, Drop bar, Combo UD carbon, -10°
Headset Description: Acros, Integrated, Integrated + Xelius Acros Spacer
Saddle Description: Fizik, Race, Argo Vento R5 140 mm
Seatpost Description: Lapierre, Non Suspension, Carbon light, Ø: 27.2 mm, L: 350 mm
Stem Description: Lapierre, integrated in handlebar
Sistema de frenos
Brake Rear Mount: Flat Mount
Brake Front Description: Shimano, Freno de disco hidráulico, Dura-Ace R9270, 160 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, Dura-Ace R9270, 140 mm
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 28
Tyre Description: Continental, GP5000S TR Tubeless ready, 28-622
Tyre Rear Description: Continental, GP5000S TR Tubeless ready
Wheelset Description: Lapierre, Road Disc Carbon 700x21c, 42mm height, Tubeless Ready
Wheelset Rear Description: Lapierre, Road Disc Carbon 700x21c, 42mm height, Tubeless Ready
Wheelsize Description: 28, 28
Bottom bracket drop [mm]: 67 mm
Chain stay length [mm]: 405 mm
Fork offset [mm]: 368 mm
Fork total length [mm]: 50 mm
Head tube angle: 72 degrees,73 degrees,74 degrees
Head tube length [mm]: 105 mm,120 mm,140 mm,160 mm,180 mm
Reach [mm]: 376 mm,383 mm,393 mm,403 mm,415 mm
Stack [mm]: 501 mm,516 mm,538 mm,557 mm,580 mm
Seat tube angle: 74 degrees,73.5 degrees
Seat tube length [mm]: 440 mm,460 mm,490 mm,520 mm,550 mm
Top tube length [mm]: 520 mm,531 mm,547 mm,568 mm,587 mm
Wheelbase [mm]: 969 mm,981 mm,989 mm,1005 mm,1014 mm
Drivetrain
Cassette Teeth: 11-34T
Crankset Teeth: 52-36T
Crankset Type: double
Number Of Gears: 24
Bottom Bracket Description: Shimano, PressFit, BB72-41B
Cassette Description: Shimano, Cassette, Dura-Ace CS-R9200-12, MICRO SPLINE
Chain Description: Shimano, Cadena, Dura-Ace M9100 12s
Crankset Description: Shimano, Dura-Ace R9200
Derailleur FrontDescription: Shimano, Dura-Ace Di2 R9250
Derailleur Rear Description: Shimano, Dura-Ace, Dura-Ace Di2 R9250 12s
Gear Description: Shimano, Derailleur
Pedal Description: VP, Flat, 335 Clips&Strap
Shifter Left Description: Shimano, Shift-brake lever, Dura-Ace Di2 BR9270 + Di2 integrated Switch
Shifter Right Description: Shimano, Shift-brake lever, Dura-Ace Di2 BR9270 + Di2 integrated Switch
Frame and more
Framesize Convection: XS,S,M,L,XL
Max loadable weight (KG): 110 kg
Front Fork Type: Non Suspension
Front Fork Description: Lapierre, Xelius SL Disc Thru axle UD Superlight
Frame Description: Carbón, Hombre
Handlebar and Saddle
Handgrip Description: Lapierre
Handlebar Description: Lapierre, Drop bar, Combo UD carbon, -10°
Headset Description: Acros, Integrated, Integrated + Xelius Acros Spacer
Saddle Description: Fizik, Race, Argo Vento R5 140 mm
Seatpost Description: Lapierre, Non Suspension, Carbon light, Ø: 27.2 mm, L: 350 mm
Stem Description: Lapierre, integrated in handlebar
Sistema de frenos
Brake Rear Mount: Flat Mount
Brake Front Description: Shimano, Freno de disco hidráulico, Dura-Ace R9270, 160 mm
Brake Rear Description: Shimano, Freno de disco hidráulico, Dura-Ace R9270, 140 mm
Wheels and wheel components
Wheelset Material: Carbón
Tamaño de la rueda en pul: 28
Tyre Description: Continental, GP5000S TR Tubeless ready, 28-622
Tyre Rear Description: Continental, GP5000S TR Tubeless ready
Wheelset Description: Lapierre, Road Disc Carbon 700x21c, 42mm height, Tubeless Ready
Wheelset Rear Description: Lapierre, Road Disc Carbon 700x21c, 42mm height, Tubeless Ready
Wheelsize Description: 28, 28
OVERVOLT AM 7.8 2025
Bike Geometry
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 110 mm,130 mm,150 mm
Reach [mm]: 433 mm,455 mm,475 mm,500 mm
Stack [mm]: 638 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,460 mm,490 mm
Top tube length [mm]: 586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1231 mm,1248 mm,1276 mm,1311 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1270 T-TYPE 12s, XD
Chain Description: Sram, Cadena, GX T-TYPE 12s
Crankset Description: E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Derailleur Rear Description: Sram, S1000 Eagle AXS T-TYPE 12s
Gear Description: Sram, Derailleur
Pedal Description: XLC, by VP
Shifter Left Description: Sram, Triggershift, AXS Pod 12s
Shifter Right Description: Sram, Triggershift, AXS Pod Controller 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powertube Horizontal 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, Kiox 300
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: Rockshox, ZEB Base RUSH RC 29" 15x110 DebonAir 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: Rockshox, Deluxe Select R 205x60 mm Trunnion/30x8 mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 130 mm,150 mm,170 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, grips small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Saddle Description: Selle Royal, MTB, Terra Aidon X5 145mm S-Alloy Mobius
Seatpost Description: JD, Dropperpost, YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Stem Description: Lapierre, Not Adjustable, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, DB8 Stealth 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, DB8 Stealth 4 pistons, 200 mm
Brake Lever Description: Sram, DB8 Stealth-BL
Brake Rotor Description: Sram, HS2 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 27
Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
Tyre Rear Description: Continental, Kryptotal R Enduro Soft
Wheelset Description: Lapierre, eAM+ Alloy 32H, front: 622x33 J-bend Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Alloy 32H, 584x35 J-bend Tubeless ready
Wheelsize Description: 29, 27.5
Bottom bracket drop [mm]: 30 mm
Chain stay length [mm]: 460 mm
Fork offset [mm]: 585 mm
Fork total length [mm]: 44 mm
Head tube angle: 64.5 degrees,65 degrees
Head tube length [mm]: 110 mm,130 mm,150 mm
Reach [mm]: 433 mm,455 mm,475 mm,500 mm
Stack [mm]: 638 mm,641 mm,659 mm,678 mm
Seat tube angle: 76.5 degrees
Seat tube length [mm]: 390 mm,430 mm,460 mm,490 mm
Top tube length [mm]: 586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]: 1231 mm,1248 mm,1276 mm,1311 mm
Drivetrain
Cassette Teeth: 10-52T
Crank Arm length: 160
Crankset Teeth: 34T
Crankset Type: single
Number Of Gears: 12
Cassette Description: Sram, Cassette, XS1270 T-TYPE 12s, XD
Chain Description: Sram, Cadena, GX T-TYPE 12s
Crankset Description: E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Derailleur Rear Description: Sram, S1000 Eagle AXS T-TYPE 12s
Gear Description: Sram, Derailleur
Pedal Description: XLC, by VP
Shifter Left Description: Sram, Triggershift, AXS Pod 12s
Shifter Right Description: Sram, Triggershift, AXS Pod Controller 12s
E-bike components
Battery Capacity: 800 Wh
Battery Location: Downtube
Motor Torque [nm]: 85 Nm
Motor Location: Center
Battery Description: Bosch, Powertube Horizontal 800Wh
Charger Description: Bosch, Quick Charger, Charger 4A
Display Description: Bosch, Kiox 300
Motor Description: Bosch, Performance line CX
Frame and more
Framesize Convection: S,M,L,XL
Max loadable weight (KG): 120 kg
Front Fork Type: Suspension
Suspension Type: Fully
Travel Front: 170 mm
Front Fork Description: Rockshox, ZEB Base RUSH RC 29" 15x110 DebonAir 170 mm
Frame Description: HIGH, Aluminio, Hombre
Shock Description: Rockshox, Deluxe Select R 205x60 mm Trunnion/30x8 mm
Handlebar and Saddle
Handlebar Diameter: 35 mm
Handlebar Material: Aluminio
Handlebar Rise: 30
Handlebar Width: 800 mm
Seatpost Material: Aluminio
Seatpost Travel (mm): 130 mm,150 mm,170 mm
Stem Length: 35 mm,45 mm
Handgrip Description: Lapierre, grips small diameter
Handlebar Description: Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Headset Description: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Saddle Description: Selle Royal, MTB, Terra Aidon X5 145mm S-Alloy Mobius
Seatpost Description: JD, Dropperpost, YSP18, Ø: 31.6 mm, travel: 130 mm + Shimano lever
Stem Description: Lapierre, Not Adjustable, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Sistema de frenos
Brake Rear Mount: Post Mount
Brake Front Description: Sram, Freno de disco hidráulico, DB8 Stealth 4 pistons, 220 mm
Brake Rear Description: Sram, Freno de disco hidráulico, DB8 Stealth 4 pistons, 200 mm
Brake Lever Description: Sram, DB8 Stealth-BL
Brake Rotor Description: Sram, HS2 220 / 200 mm, 6 bolt Disc
Wheels and wheel components
Wheelset Material: Aluminio
Tamaño de la rueda en pul: 27
Tyre Description: Continental, Kryptotal F Enduro Soft, 60-622
Tyre Rear Description: Continental, Kryptotal R Enduro Soft
Wheelset Description: Lapierre, eAM+ Alloy 32H, front: 622x33 J-bend Tubeless Ready
Wheelset Rear Description: Lapierre, eAM+ Alloy 32H, 584x35 J-bend Tubeless ready
Wheelsize Description: 29, 27.5
