PVP : 6499 EUROS
OFERTA : 4200 EUROS
Bike Geometry
- Bottom bracket drop [mm]: 5 mm
- Chain stay length [mm]: 460 mm
- Head tube angle: 63.5 degrees
- Head tube length [mm]: 120 mm,130 mm,140 mm
- Reach [mm]: 425 mm,455 mm,480 mm,510 mm
- Stack [mm]: 644 mm,653 mm,662 mm
- Stand over height [mm]: 790 mm,780 mm,760 mm
- Seat tube angle: 75 degrees
- Seat tube length [mm]: 410 mm,440 mm,465 mm,495 mm
- Top tube length [mm]: 574 mm,604 mm,631 mm,663 mm
- Wheelbase [mm]: 1245 mm,1275 mm,1305 mm,1339 mm
Drivetrain
- Cassette Teeth: 10-51T
- Crank Arm length: 160,165
- Crankset Teeth: 36T
- Crankset Type: single
- Number Of Gears: 12
- Pedal Inclusive: Si
- Cassette Description: Shimano, Deore CS-M6100-12, MICRO SPLINE
- Chain Description: Shimano, Cadena, Deore CN-M6100 12s
- Chain Guide Description: Winning, Nylon direct mount
- Crankset Description: Samox, ISIS Alloy Crankarm 160 mm + Direct mount Chainring
- Derailleur Hanger Description: Sram, Hanger UDH
- Derailleur Rear Description: Shimano, SLX RD-M7100 12s, Shadow+
- Gear Description: Shimano, Derailleur
- Pedal Description: XLC, VPE-527 MTB Alloy Pedal w. Reflector
- Shifter Right Description: Shimano, Triggershift, SLX SL-M7100, Rapidfire+
E-bike components
- Battery Capacity: 720 Wh
- Battery Location: Powertube
- Max Support Speed [km/h]: 25 km/h
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
- Numer Of Level Assistance: 0
- Battery Description: Yamaha, InTube 720Wh
- Charger Description: Yamaha, Standard Charger 4A
- Display Description: Yamaha, Interface X + Ring Control Lever

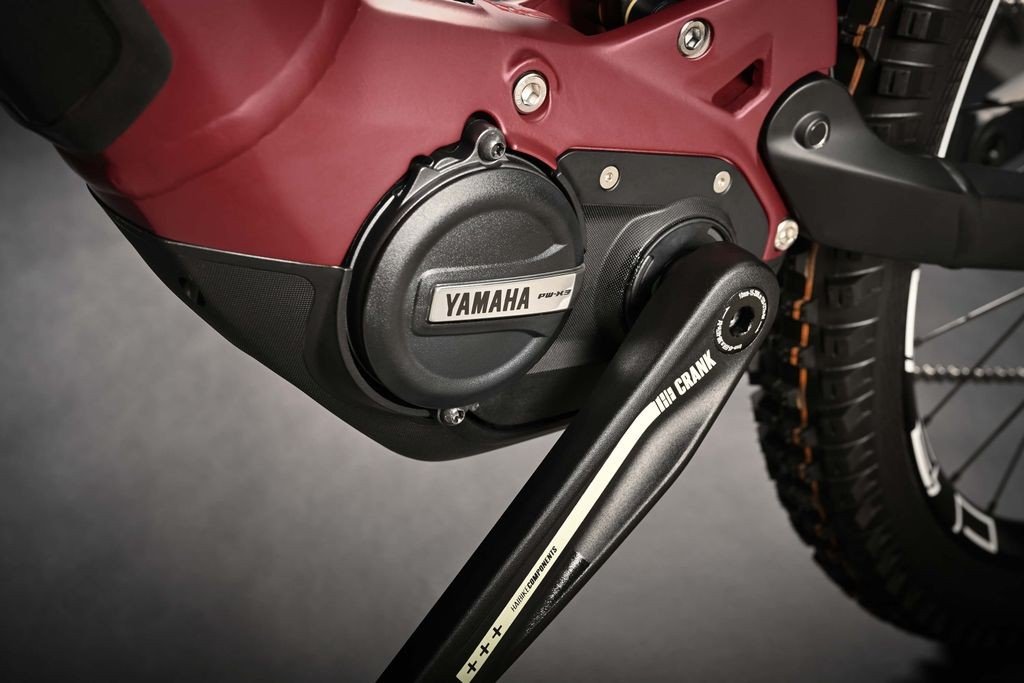

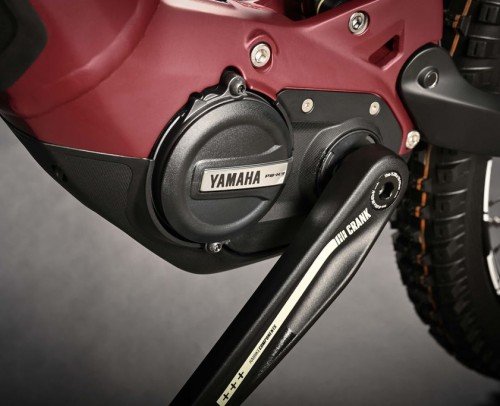

- Motor Description: Yamaha, PW-X3
Frame and more
- Framesize Convection: S,M,L,XL
- Max loadable weight (KG): 120 kg
- Front Fork Type: Suspension
- Suspension Type: Fully
- Travel Front: 180 mm
- Travel Rear: 180 mm
- Front Fork Description: FOX Factory, 38 Float Performance Grip 180 mm
- Frame Description: High, Aluminio, Unisex
- Shock Description: FOX Factory, Float X2 Performance 225x75mm, Trunnion
Handlebar and Saddle
- Handlebar Diameter: 31.8 mm
- Handlebar Width: 780 mm
- Seatpost Material: Aluminio
- Stem Length: 40 mm
- Handgrip Description: Velo, VLG-1751D2, MTB Grips
- Handlebar Description: Haibike, TheBar++ Dia. 31.8 mm
- Headset Description: Acros, Semi-integrated, BlockLock 135° ZS44/ZS56
- Saddle Description: Selle Royal, Vivo 1216HRN
- Seatpost Description: Limotec, Dropperpost, A4H Dropper, Dia. 34.9 mm, Travel: 125 mm
- Stem Description: Haibike, The Stem++ Ahead JD-ST202A-1, L: 40 mm
Lighting
- Brake Light: No
Sistema de frenos
- Brake Rear Mount: Post Mount
- Brake Front Description: Magura, Freno de disco hidráulico, MT5, 4 pistons 203 mm
- Brake Rear Description: Magura, Freno de disco hidráulico, MT5, 4 pistons 203 mm
- Brake Lever Description: Magura, MT5 HC-lever, Alu-Carbotecture
- Brake Rotor Description: Magura, MDR-C 203 mm, 6 bolt Disc
Wheels and wheel components
- Tamaño de la rueda en pul: 29
- Tyre Description: Schwalbe, Magic Mary Evo, Super Trail, TLE, 62-622
- Tyre Rear Description: Schwalbe, Big Betty Evo, Super Gravity, TLE
- Wheelset Description: Mavic, E-Deemax 30 mm, 15x110 mm, 6 bolt Disc
- Wheelset Rear Description: Mavic, E-Deemax 35 mm, 12x148 mm, 6 bolt Disc MS
- Wheelsize Description: 29, 27.5
