Bike Geometry

• Bottom bracket drop [mm]: 67 mm
• Chain stay length [mm]: 405 mm
• Fork offset [mm]: 0 mm
• Fork total length [mm]: 0 mm
• Head tube angle: 72 degrees,73 degrees,74 degrees
• Head tube length [mm]: 105 mm,120 mm,140 mm,160 mm,180 mm,200 mm
• Reach [mm]: 376 mm,383 mm,393 mm,403 mm,415 mm,428 mm
• Stack [mm]: 501 mm,516 mm,538 mm,557 mm,580 mm,599 mm
• Seat tube angle: 74 degrees,73.5 degrees
• Seat tube length [mm]: 440 mm,458 mm,489 mm,518 mm,547 mm,577 mm
• Top tube length [mm]: 520 mm,531 mm,547 mm,568 mm,587 mm,605 mm
• Wheelbase [mm]: 969 mm,981 mm,989 mm,1005 mm,1014 mm,1032 mm

Drivetrain

• Cassette Teeth: 10-36T
• Crankset Teeth: 48-35T
• Crankset Type: double
• Number Of Gears: 24
• Pedal Inclusive: Si
• Bottom Bracket Description: Sram, PressFit, DUB 86.5 Road
• Cassette Description: Sram, Cassette, Rival XG-1250 D1 12s, XDR
• Chain Description: Sram, Cadena, Rival 12s
• Crankset Description: Sram, Rival D1 DUB
• Derailleur FrontDescription: Sram, Rival ETAP AXS Brazed-On

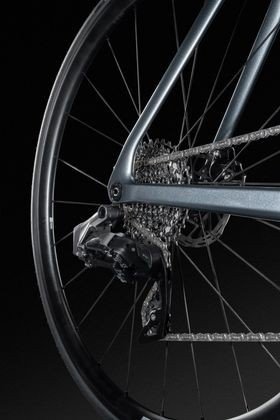

• Derailleur Rear Description: Sram, Rival ETAP AXS, 12s
• Gear Description: Sram, Derailleur
• Pedal Description: VP, VP-335 Clips&Strap
• Shifter Left Description: Sram, Shift-brake lever, Rival ETAP AXS HRD Shift-Brake-Lever
• Shifter Right Description: Sram, Shift-brake lever, Rival ETAP AXS HRD Shift-Brake-Lever

Frame and more

• Framesize Convection: XS,S,M,L,XL,XXL
• Max loadable weight (KG): 110 kg
• Front Fork Type: Non Suspension
• Front Fork Description: Lapierre, Carbon UD SLI
• Frame Description: Carbón, Hombre

Handlebar and Saddle

• Handgrip Description: Lapierre
• Handlebar Description: Lapierre, Drop bar, Carbon Aero, Drop: 130 mm, Reach: 70 mm, Flare: 5°
• Headset Description: Acros, Integrated, Integrated
• Saddle Description: Prologo, Race, Dimension STN rails
• Seatpost Description: Lapierre, Non Suspension, Carbon, Xelius DRS, 0 mm Offset, L: 350 mm
• Stem Description: Lapierre, Not Adjustable, Alloy, semi-int. routing, -10°, Ø: 31.8 mm, L: 80 mm

Sistema de frenos

• Brake Front Mount: Flat Mount
• Brake Rear Mount: Flat Mount
• Brake Front Description: Sram, Freno de disco hidráulico, Rival ETAP AXS HRD, 2 pistons, 160 mm
• Brake Rear Description: Sram, Freno de disco hidráulico, Rival ETAP AXS HRD, 2 pistons, 140 mm

Wheels and wheel components

• Wheelset Material: Aluminio
• Tamaño de la rueda en pul: 28
• Tyre Description: Schwalbe, One Performance, RaceGuard, MicroSkin, 25-622
• Tyre Rear Description: Schwalbe, One Performance, RaceGuard, MicroSkin
• Wheelset Description: DT Swiss, E1800 Spline 30 mm, Centerlock, TR
• Wheelset Rear Description: DT Swiss, E1800 Spline, Centerlock, Tubeless compatible, XDR
• Wheelsize Description: 28, 28
